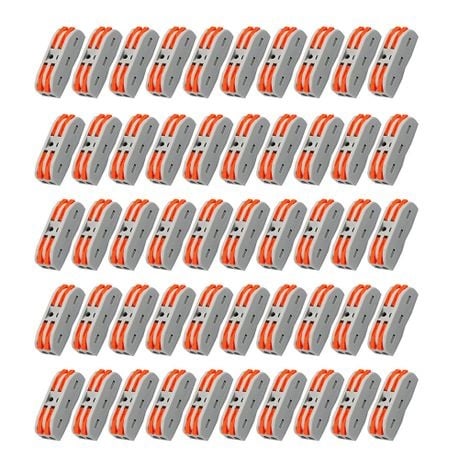

50 Piece Quick Splicing Butt Compact Wire Connectors

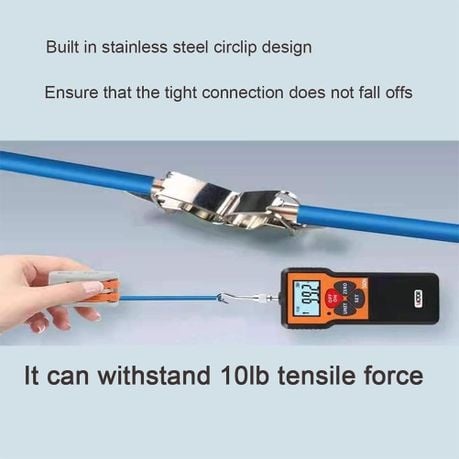

2. It has the fewest installer possibilities for error of any connector, like not tightening wire properly or with sufficient torque. It is very good at preventing thermal cycling release of wires connected together.If you are a DIY person these guys will make you sleep better at night when doing your own wiring projects.

3. Lift the levers - Insert stripped wires in place - Simply close the levers; BANG;;; You get the job done.

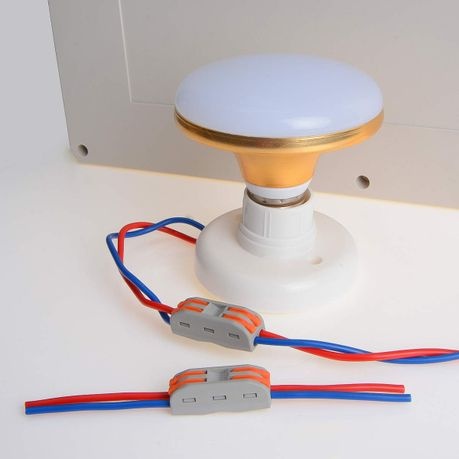

4. The connector for joining braided and solid wire and wires of differing sizes. They work with most every gauge of normal household wiring: ceiling fans, sockets, switches, cars, motorcycles, ships, loudspeakers, lamps, electrical boxes, chandeliers, light switches, fan controls, and much more.

5. Just lift up the lever, insert the stripped wire, and press the lever closed,holds tight and makes a solid connection.These are a good purchase for those of people that are doing electrical projects or work where you need to connect lots of wires. Sometimes you need to jumper something or run tests on a circuit .they do not mess up the wire ends nearly as much,keeping electrical boxes relatively roomy and not having to twist a fistful of copper wire together.

6. It has the fewest installer possibilities for error of any connector, like not tightening wire properly or with sufficient torque; It is very good at preventing thermal cycling release of wires connected together; It would save tons of time and effort for folks who have been constantly doing electrical projects with wires.

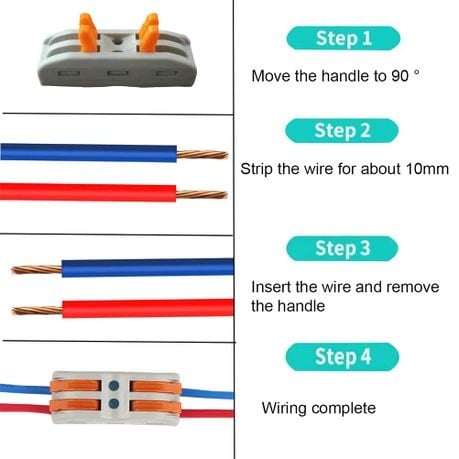

How to use:

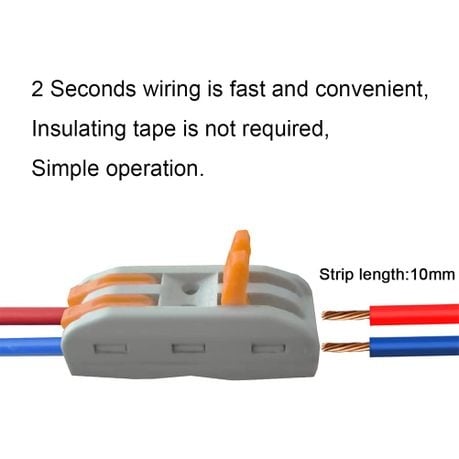

1.Strip the wire sheath according to the calibration size,9-10mm.

2.Open the orange handle at right angles Insert the wire.

3.Press the orange handle The wire can be connected.

4. Check the test hole whether it is connected correctly.

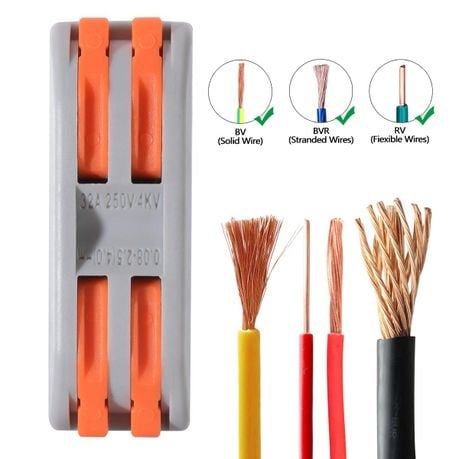

Applicable cable:

A variety of different models, suitable for all kinds of cables

1. Single strand hard wire (BV)
2. 2.Multi strand hard wire BVR
3. 3. Multi strand cord RV

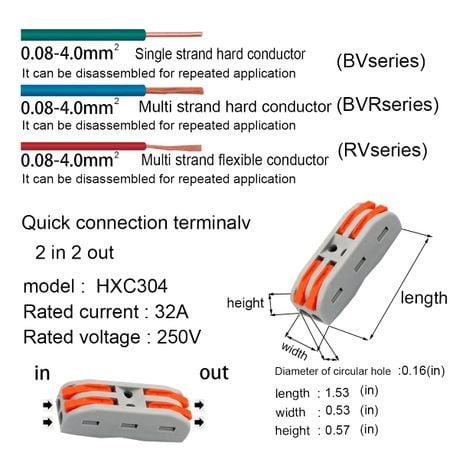

4. Specification
5. 1.Wire Cross section:AWG 28-12(0.08~4mm2)
6. 2.Rated Voltage: 110V-600V
7. 3.Rated Current: 32A

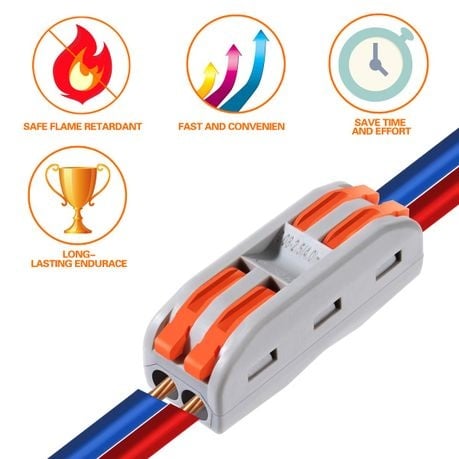

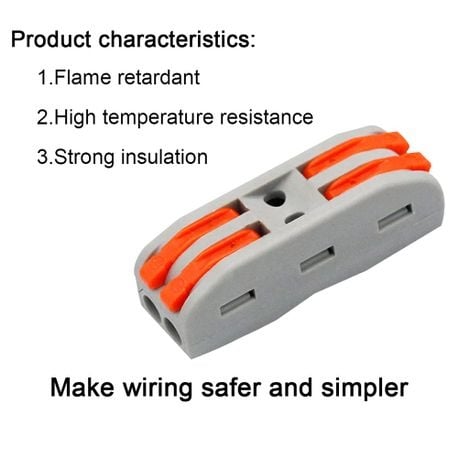

8. 4.Shell Material: flame retardant PC
9. 5.Internal Material: PA
10. 6.Guide Strip: Electrolytic copper (Surface tin plating)
11. 7.Spring: Nickel chromium alloy steel
12. 8.Product Size: (2 Way):1.54"(L)x0.52"(W)x0.57"(H)
13. What's in the box
14. 50 x Wire Connector
15. What's in the box
16. 50 x Wire Connector
